Anonymize data with Neosync

Neosync is an open-source synthetic data orchestration platform that can create anonymized data and sync it across all of your database environments for better security, privacy, and development.

In this guide, we'll show you how to anonymize sensitive data in a Neon database branch for testing and rapid development using Neosync.

Prerequisites

To complete the steps in this guide, you require the following:

• A Neon account and project. If you do not have those, see Sign up.
• A source database in Neon. This guide uses a source database named neon-neosync that resides on the main branch of the Neon project. The database has a users table populated with 1000 rows of data. To set the same table, see Generate synthetic data with Neosync.
• A Neosync account.

Neon setup

Anonymizing data requires source and destination databases. This section describes the source database and how to set up a destination database branch in Neon where you will sync anonymized data using Neosync.

The source database

This guide assumes you already have a source database in Neon. The source database referenced in this guide has a users table, created in the public schema. The users table has 1000 rows and is defined as shown below:

CREATE TABLE public.users (
    id UUID PRIMARY KEY,
    first_name VARCHAR(255) NOT NULL,
    last_name VARCHAR(255) NOT NULL,
    email VARCHAR(255) NOT NULL,
    age INTEGER NOT NULL
);

If you do not have a source database and would like to create one with the same table and data, see Generate synthetic data with Neosync.

Create a branch for the destination database

To create a branch for the destination database, which we'll name neosync-destination, perform the following steps:

1. Navigate to the Neon Console.
2. Select your project.
3. Select Branches from the sidebar.
4. Click New Branch.
5. Enter a name for the branch (neosync-destination), and select your main branch as the parent.
6. Click Create new branch. A modal opens with the connection details for your new branch. Copy the connection string. You'll need it to set up Neosync.

Neosync setup

The Neosync setup involves setting up a connection to the destination database and creating a data synchronization job to create anonymized data.

Create a destination database connection

1. Navigate to Neosync and log in. Go to Connections > New Connection and click on Neon.

2. Enter a unique name for the connection in the Connection Name field. We'll give the connection the same name as the destination branch: neosync-destination

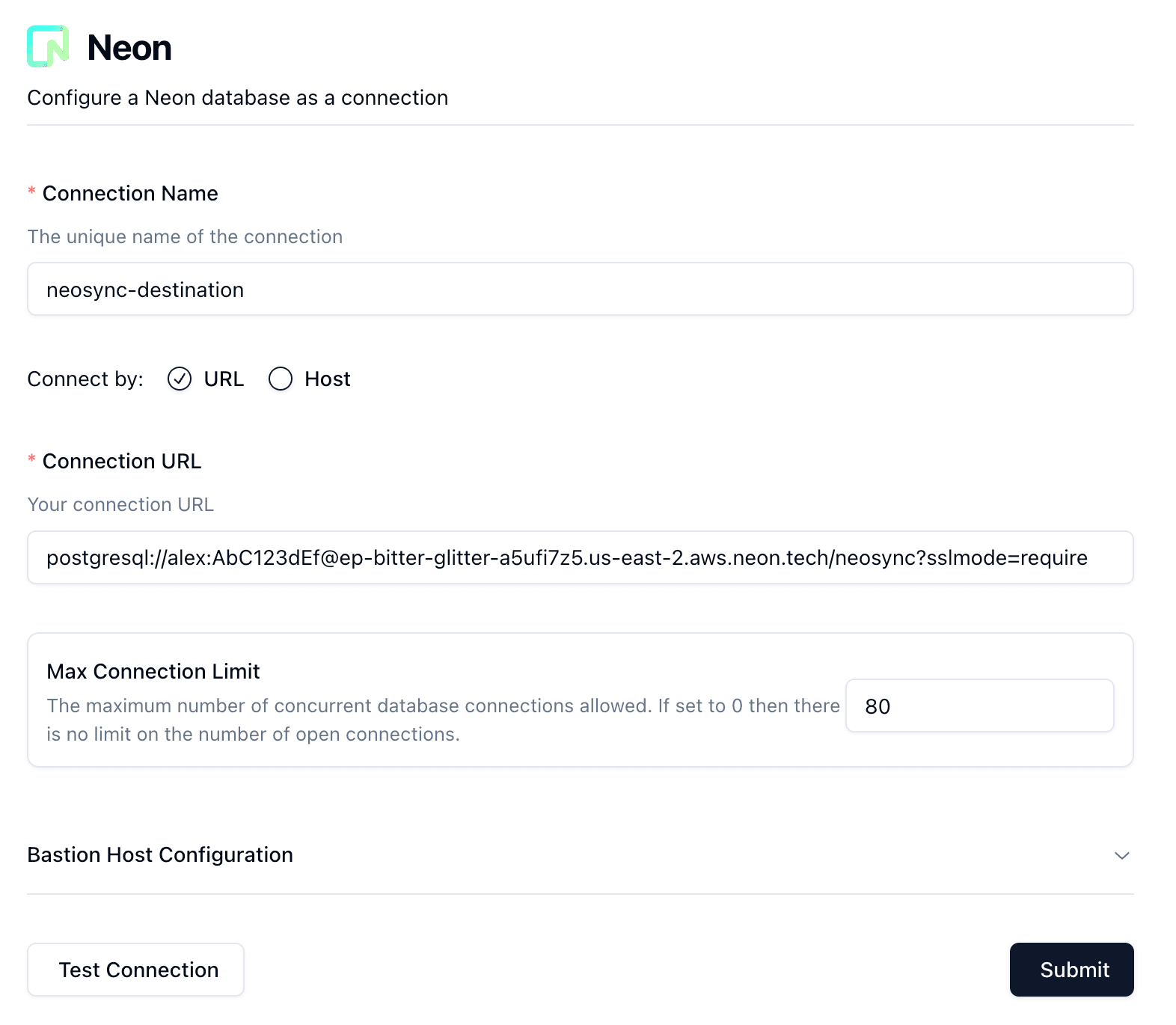

3. Paste the Neon database connection string for the branch in the Connection URL field and click Test Connection to verify that the connection works.



4. Click Submit to save the connection configuration.

Create a data synchronization job

To generate anonymized data, we need to create a Job in Neosync.

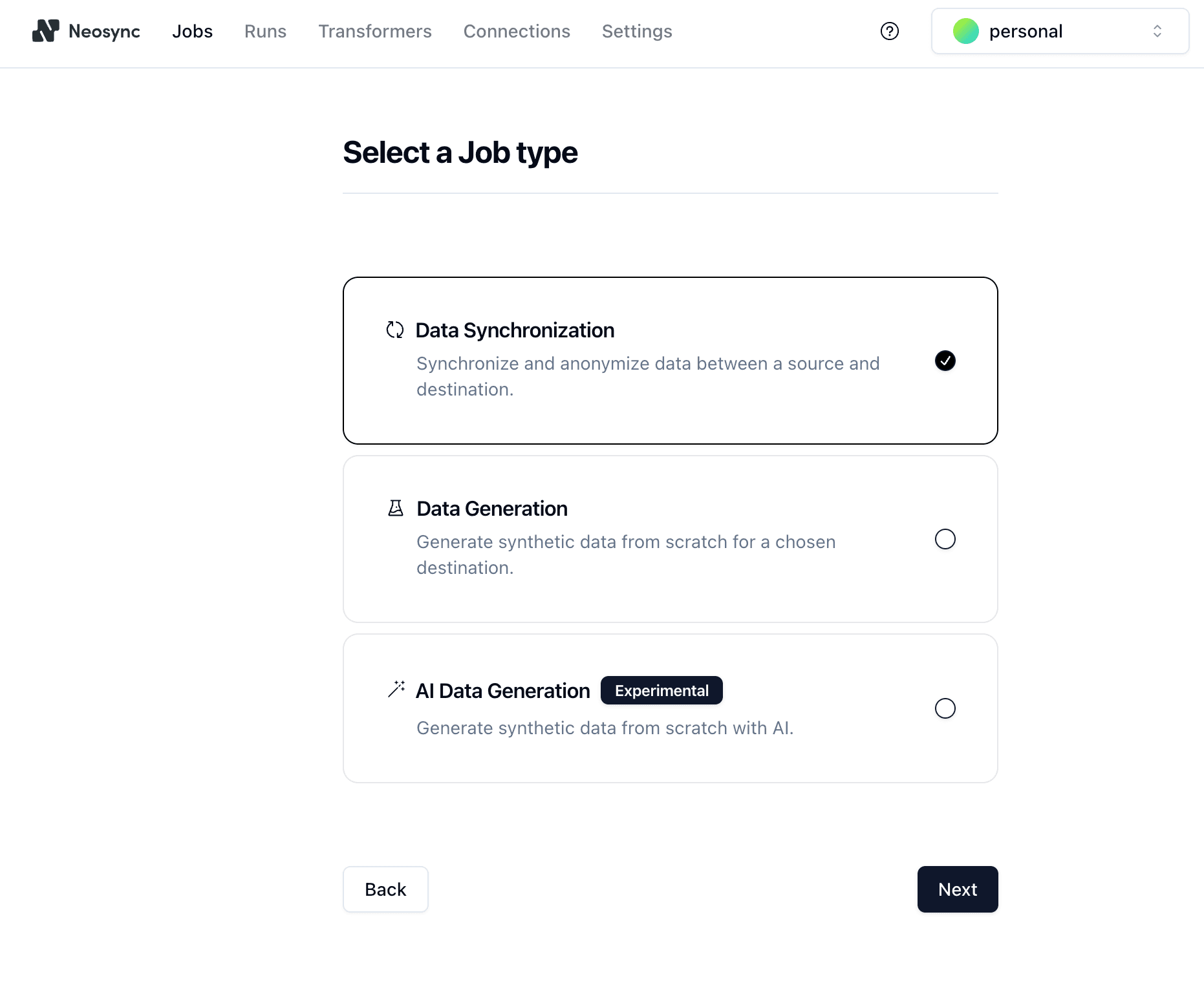

1. In Neonsync, click on Jobs and then click New Job. You are presented with a few job types. Since you are anonymizing existing data, select the Data Synchronization job type and click Next.

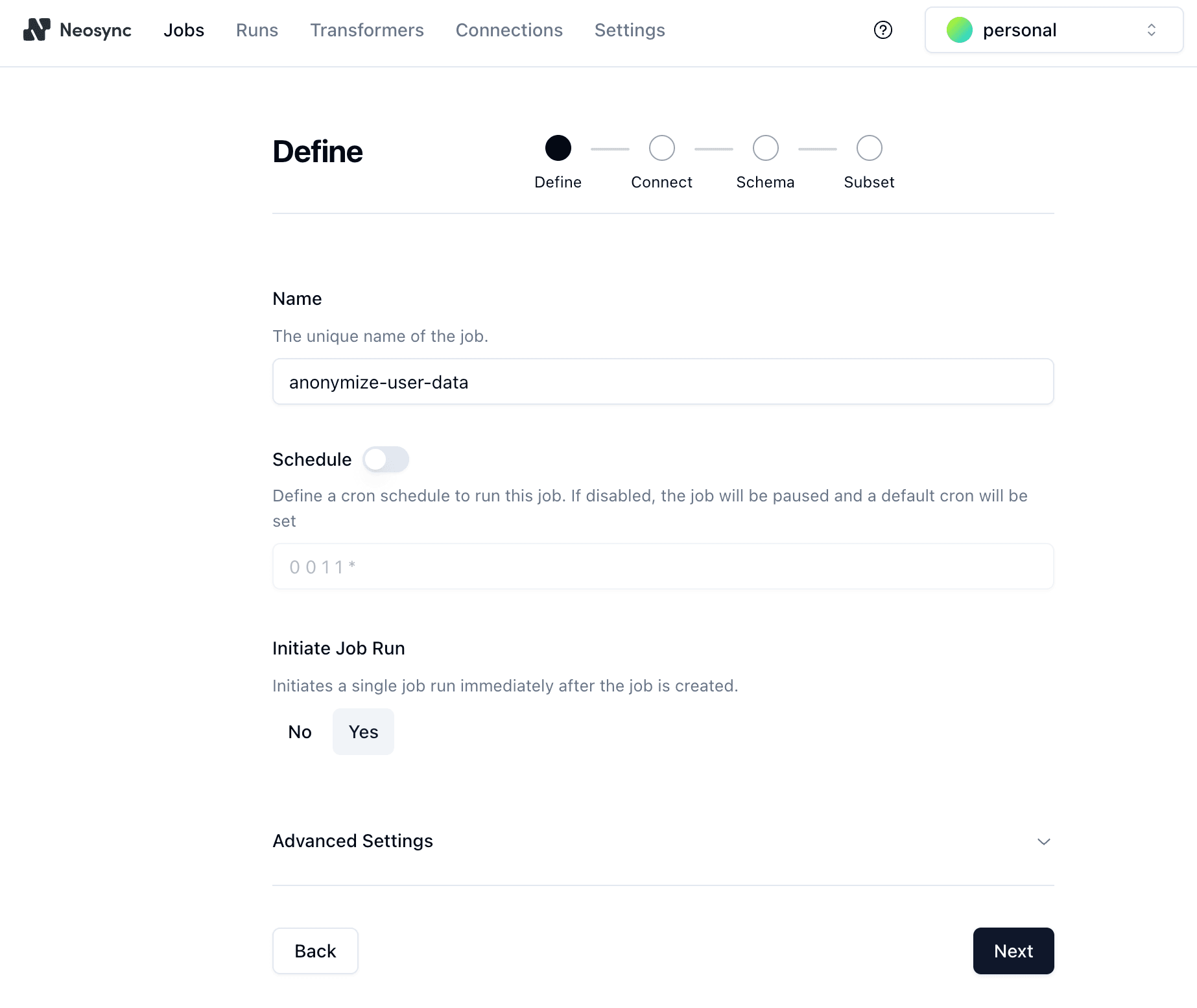

2. Give the job a name (e.g. anonymize-user-data) and set Initiate Job Run to Yes.



3. Click Next to move to the Connect page.

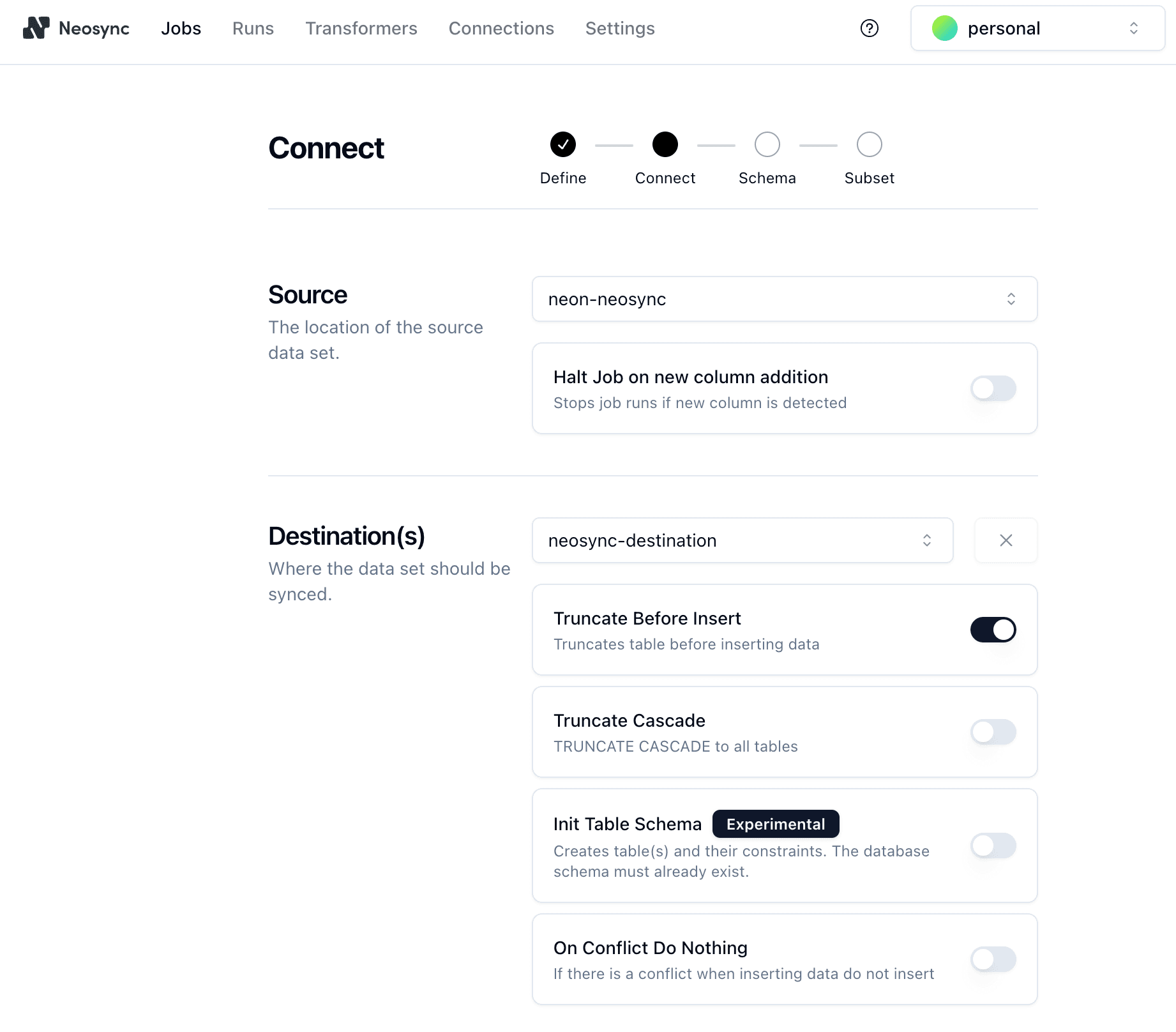

   • Select the location of the source data set from the dropdown. In this example, the location is the neon-neosync connection to the database on your main branch.
   • Select the location of the destination database where the data should be synced. In this example, the destination location is the neosync-destination connection to the database on your destination branch.
   • We'll also enable the Truncate Before Insert option to truncate the table before inserting data. This will replace the data that was copied when you created the destination branch and refresh the data each time you run the job.



   Click Next.

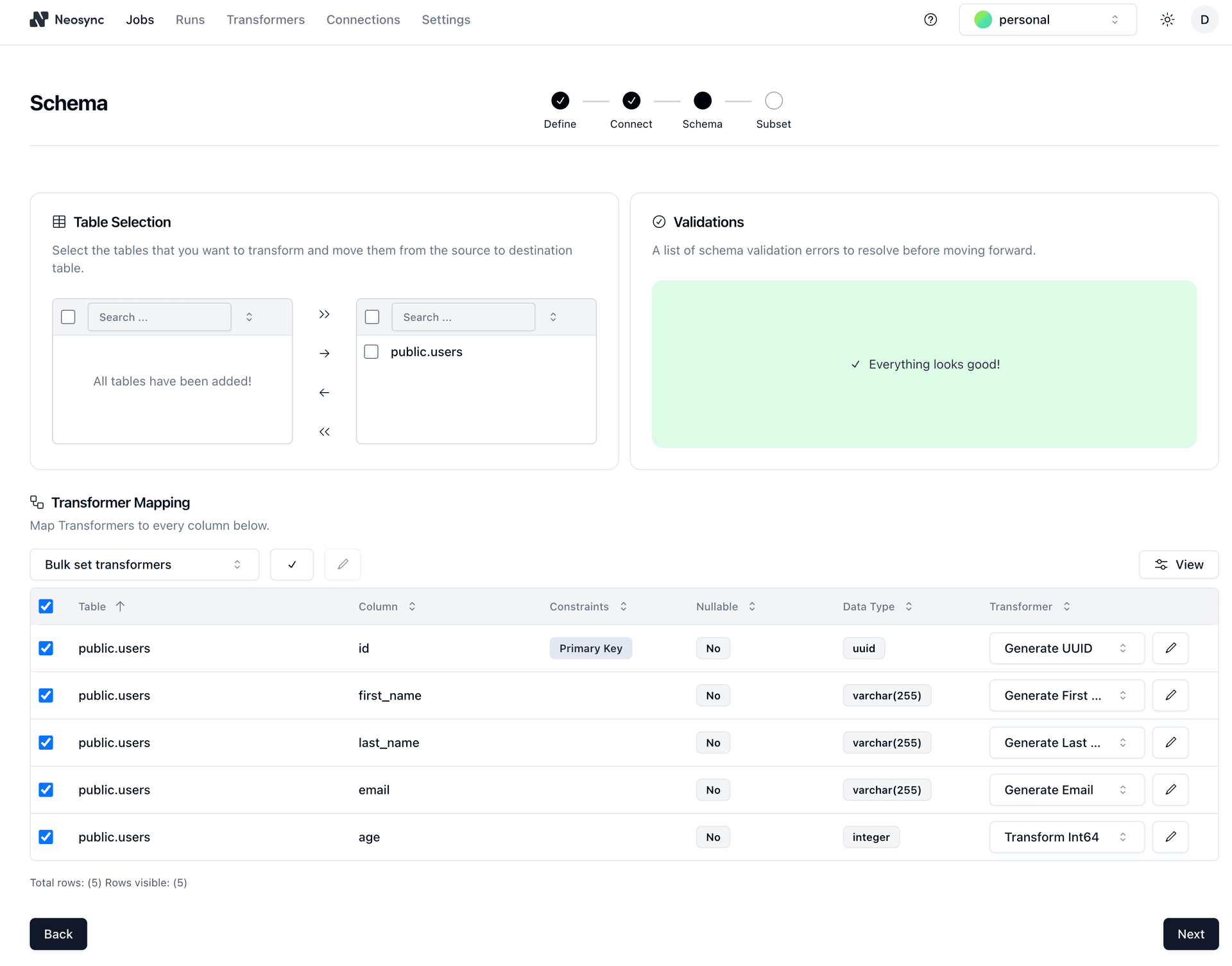

4. On the Schema page:

   • Under Table Selection, select the schema and table (public.users in this example) and move it from the source to the destination table.
   • Under Transformer Mapping, select all of the columns and choose a Transfomer to define the type of data you want to generate for each column. For the age column, we used the Generate Random Int64 to randomly generate ages between 18 and 40. You can configure the generator by clicking on the edit icon next to the transformer and setting min and max values.



5. Click Next to go to the Subset page. The subset feature allows you to automatically subset data for child tables by defining SQL filters. Since we're only anonymizing data for a single table in this guide, we'll just click Save to create the job and start the first run.

   note

   To learn more about Neosync's subset feature, see Subsetting with referential integrity.

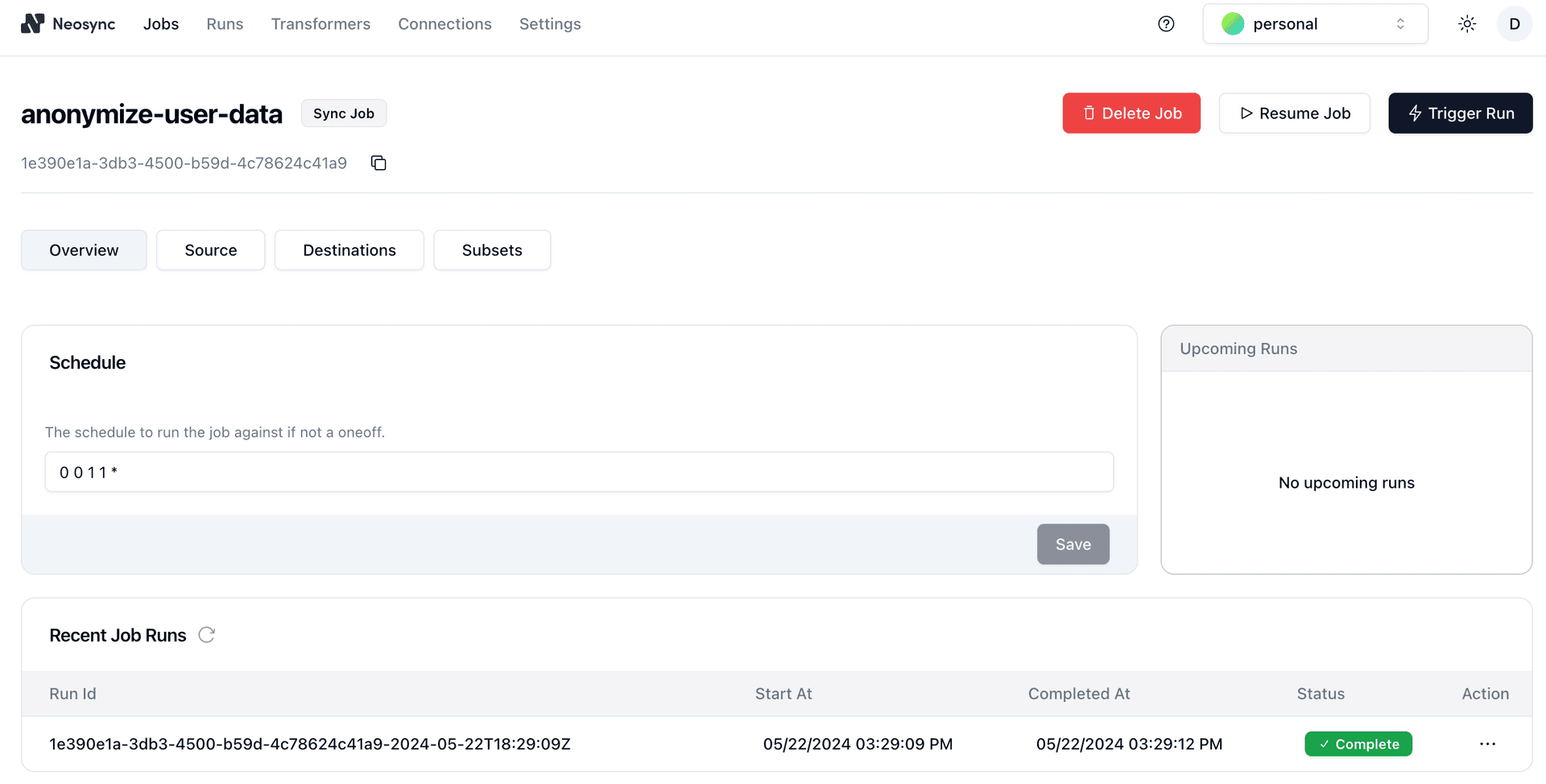

   You can see that the job ran successfully, and in just a few seconds, it copied, anonymized, and moved data from your source database to your destination database in Neon.

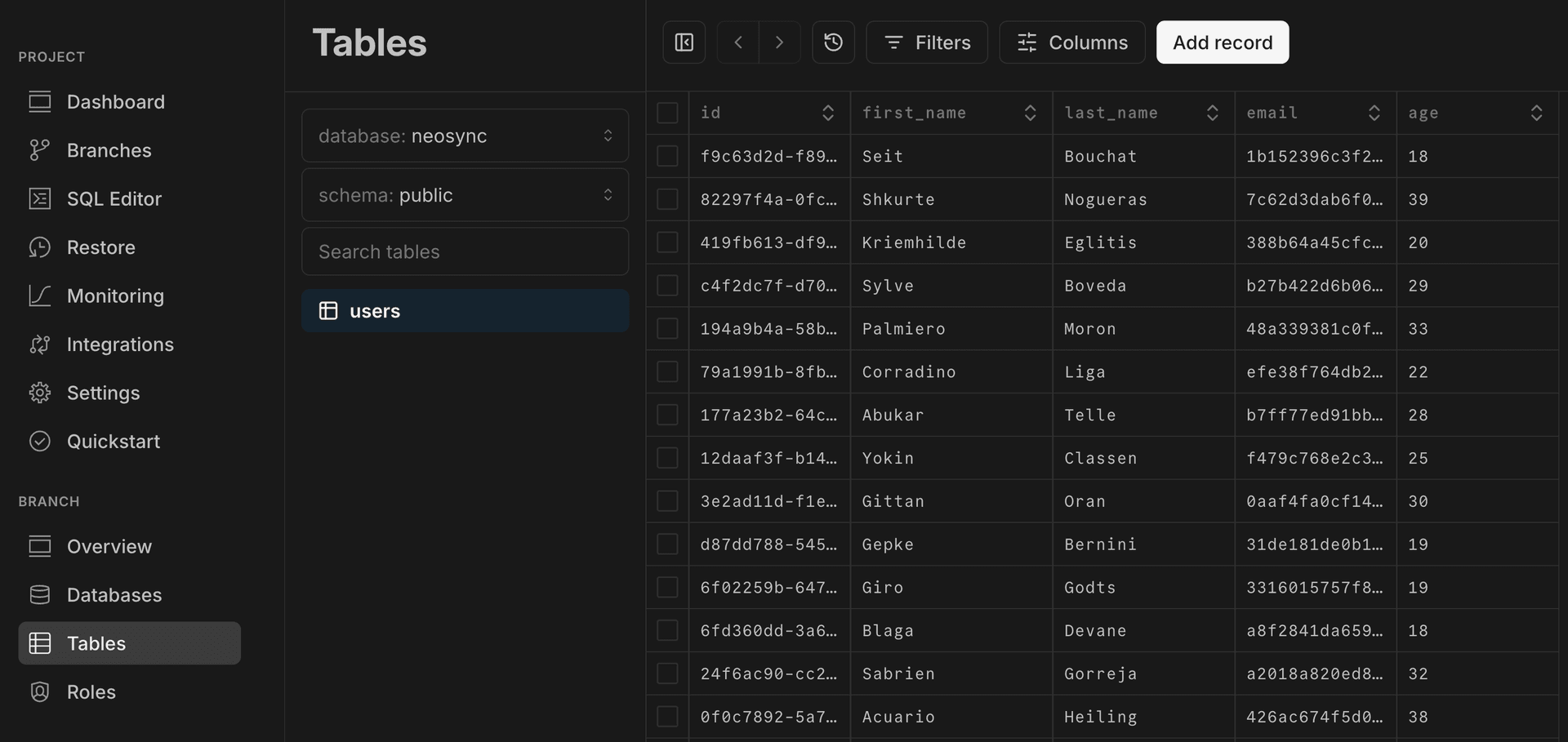

6. You can verify that the anonymized data was generated in your destination branch by navigating to the Neon Console, selecting Tables from the sidebar, and selecting the neosync-destination branch from the breadcrumb selector at the top of the page. Your anaonymized data should be visible in public.users table.



Conclusion

In this guide, we stepped through how to sync and anonymize sensitive data between source and destination databases in Neon using Neosync. We showed how to create a Neon branch and use a Neosync job to anonymize the data on the branch. Alternatively, you could have created another database in Neon as your destination, but creating a branch simplifies the process by removing the requirement to create a schema in the destination database — Neon's branches copy parent's schema and data for you.

This was a small test with only 1000 rows of data, but you can follow the same procedure to branch and anonymize millions of rows of data, and Neosync can manage any referential integrity constraints for you.
